NEMA34 86mm 2phase closed loop stepper motor with right-angle planetary gearbox and permanent magnet brake

Name: NEMA34 86mm 2phase closed loop stepper motor with rightangle planetary gearbox and permanent magnet brake
Brand: KIMBROUGH
Price: 1 USD

Brand Name : KIMBROUGH

Model Number : 86HSEZPGB65, 86HSEZPGB80, 86HSEZPGB118, 86HSEZPGB128, 86HSEZPGB150

Certification : CE

Place of Origin : Guangdong, China

MOQ : 1pc

Payment Terms : T/T, Paypal, Western union

Supply Ability : 999

Delivery Time : in stock

Packaging Details : carton

Contact Now

NEMA34 size 86mm 2phase closed loop stepper motor with right-angle planetary gearbox and permanent magnet brake / motor with encoder and right-angle reducer and brake

Planetary gearbox specifications

Technical Data		1 stage	2 stage
Reduction ratio		3, 4, 5, 7, 10	12, 16, 20, 25, 28, 35, 40, 50, 70
Length L1:	mm	157.5	181
Rated load:	Nm	≤90	≤150
Efficiency:	%	96	94
Backlash:	arcmin	≤10	≤12
Weight:	KG	4.6	5.2
Rated input speed:	rpm	3500	3500
Max input speed:	rpm	6000	6000
Safety class:	IP	65	65
Lubrication:		Life grease lubrication	Life grease lubrication
Noise:	dB	≤62	≤62
Service life:	h	~20000	~20000

Specifications

Model	Length (L:mm)	Motor Holding Torque (N.m)	Rated Current (A)	Resistance/Phase (Ω)	Inductance/Phase (mH)	Rotor Inertia (g.cm²⁾	Brake Torque (N.m)	Weight(kg)		Matched Driver
Model	Length (L:mm)	Motor Holding Torque (N.m)	Rated Current (A)	Resistance/Phase (Ω)	Inductance/Phase (mH)	Rotor Inertia (g.cm²⁾	Brake Torque (N.m)	1-stage	2-stage	Matched Driver
86HSEZPGB65	263	3.5	6	0.4	2.35	1000	6.0	7.5	8.1	HSE86
86HSEZPGB80	278	5	6	0.42	2.4	1400		8.1	8.7
86HSEZPGB118	316	8.5	6	0.52	4.16	2100		9.6	10.2
86HSEZPGB128	326	10	6	0.7	7.3	3200		9.9	10.5
86HSEZPGB150	348	12.5	6	0.69	7.2	4000		11.2	11.8

Note: Other reduction ratio is acceptable, the brake is DC24V power-off brake, other voltage can be customized as required.

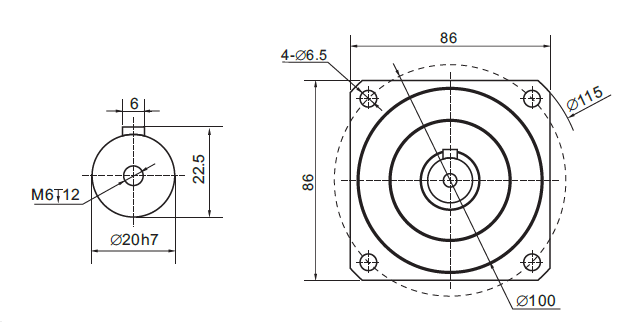

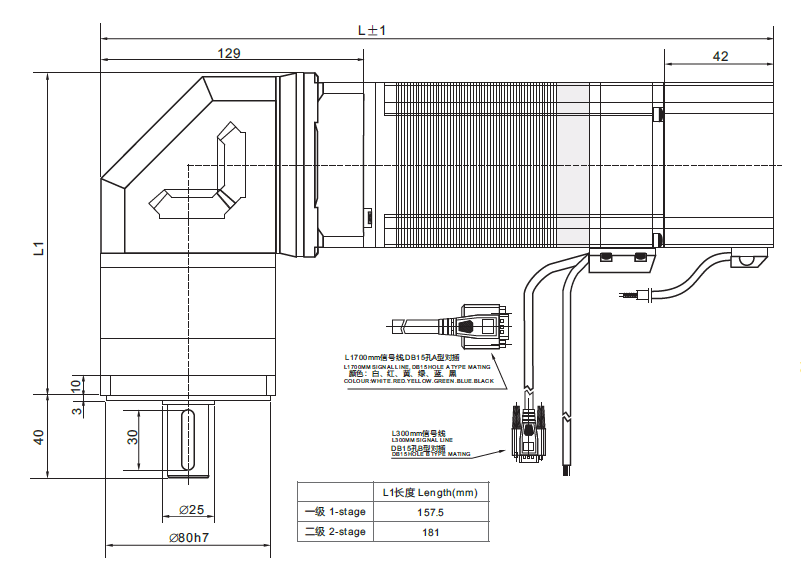

Dimension unit:mm

NEMA34 86mm 2phase closed loop stepper motor with right-angle planetary gearbox and permanent magnet brake

Encoder Connections

RED	WHITE	BLACK	BLUE	YELLOW	GREEN
5V	0V	A+	A-	B+	B-

Motor connection

NEMA34 86mm 2phase closed loop stepper motor with right-angle planetary gearbox and permanent magnet brake

NEMA34 86mm 2phase closed loop stepper motor with right-angle planetary gearbox and permanent magnet brake Images
